Room Dividers Dooris DGS9
- С$ 2,563
- Price per divider starting at
| Brand: | Dooris |
| Profile type: | Aluminium |
| Profile width: | 2 3/8’’ (60mm) |
| Profile thickness: | 1 5/8’’ (40mm) |
| Decorative profile SHP: | 5/8’’ (15mm) width |
| Profile colour: | powder coating RAL 9005 |
| Max. leaf height: | 118’’ (3000mm) |
| Max. leaf width: | 59’’ (1500mm) |
| Min. leaf width: | 9 7/8’’ (250mm) fixed, 23 ¼’’ (590mm) sliding |
| Glass type: | tempered |
| Glass thickness: | 1/6’’ (4mm) |
| Glass colour: | standard transparent; extra clear (Diamond); frosted; frosted (Diamond); tinted transparent graphite; tinted transparent bronze; tinted frosted graphite; tinted frosted bronze; fluted transparent (embossed); fluted transparent with frosted stripes (embossed). |
| Mounting method: | standard, hidden, wall-mounted |
-
Total PRICE С$ 2,563

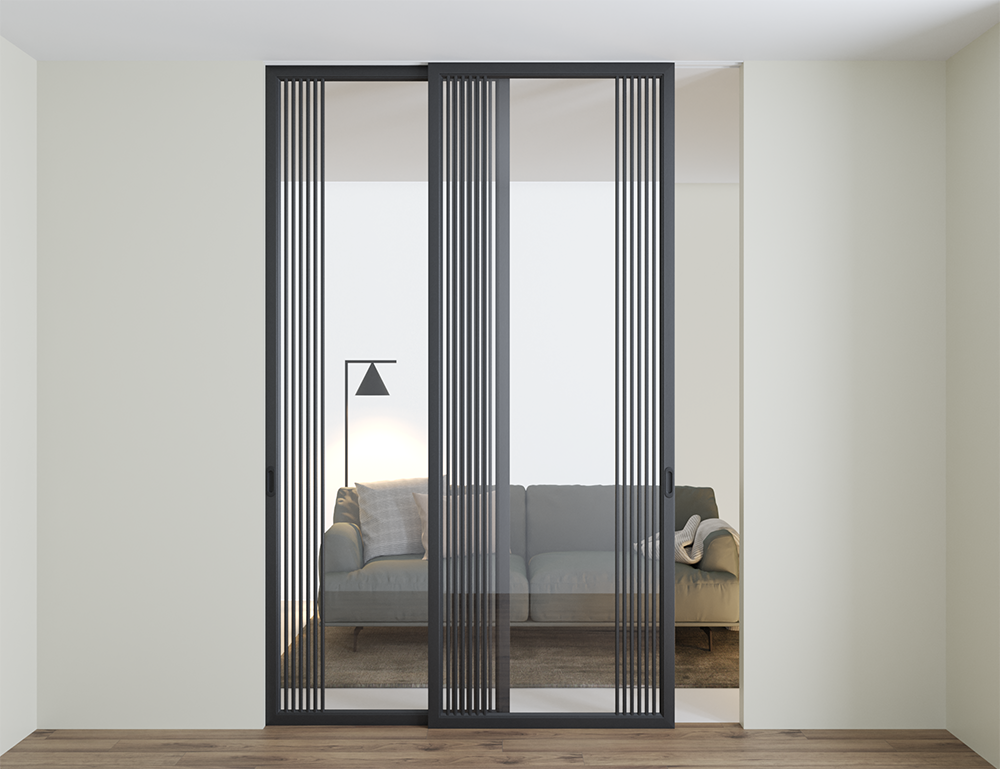

Glass sliding partitions by Dooris™ will be an excellent addition to modern homes, apartments, and offices.
It is possible to combine the sleek design of our panels with a single-leaf door system.
FRAME
Aluminum extruded profile of increased strength. Width - 2 3/8’’ (60mm), thickness - 1 5/8’’ (40mm). Due to the profile dimensions, there is the possibility of fitting hardware (recessed handles and locks).
Depending on the model, decorative aluminum profile SHP-15 (bead) with a width of 5/8’’ (15mm) and a thickness of 3/8’’ (9.5mm) is used on the grids. It is installed on the glass surface using a special adhesive connection. Individual placement of the bead according to your sample is possible.
COATING
Standart powder coating according to the RAL palette(except RAL 9005)
Painting according to the NCS palette and metallic - surcharge + 20%
DIMENSIONS
Max. leaf height: 118’’ (3000mm)
Max. leaf width: 59’’ (1500mm)
Min. leaf width: 9 7/8’’ (250mm) fixed, 23 ¼’’ (590mm) sliding
GLASS
Tempered glass - 1/6’’ (4mm) thick
Possible types: standard transparent; extra clear (Diamond); frosted; frosted (Diamond); tinted transparent graphite; tinted transparent bronze; tinted frosted graphite; tinted frosted bronze; fluted transparent (embossed); fluted transparent with frosted stripes (embossed).
MIRROR
Mirror - 1/6’’ (4mm).
For safety, a film of white or black colour is applied on the reverse side (such sashes are used in built-in wardrobes, utility rooms, etc.).
Available types of mirrors: regular mirror; tinted bronze mirror; tinted graphite mirror; tinted frosted bronze mirror; and tinted frosted graphite mirror.
Lacobel glass - 1/6’’ (4mm).
Available colours: lacobel RAL 9003; lacobel RAL 9005; lacobel RAL 1013.
INSTALLATION METHOD
Standard - on the ceiling with a cornice.
Wall-mounted - on the wall above the opening with a cornice.
Hidden - in a suspended ceiling, built-in system.
All decorative elements of the system are in the colour of the sash profile.
Villes 2000 hardware is used.
