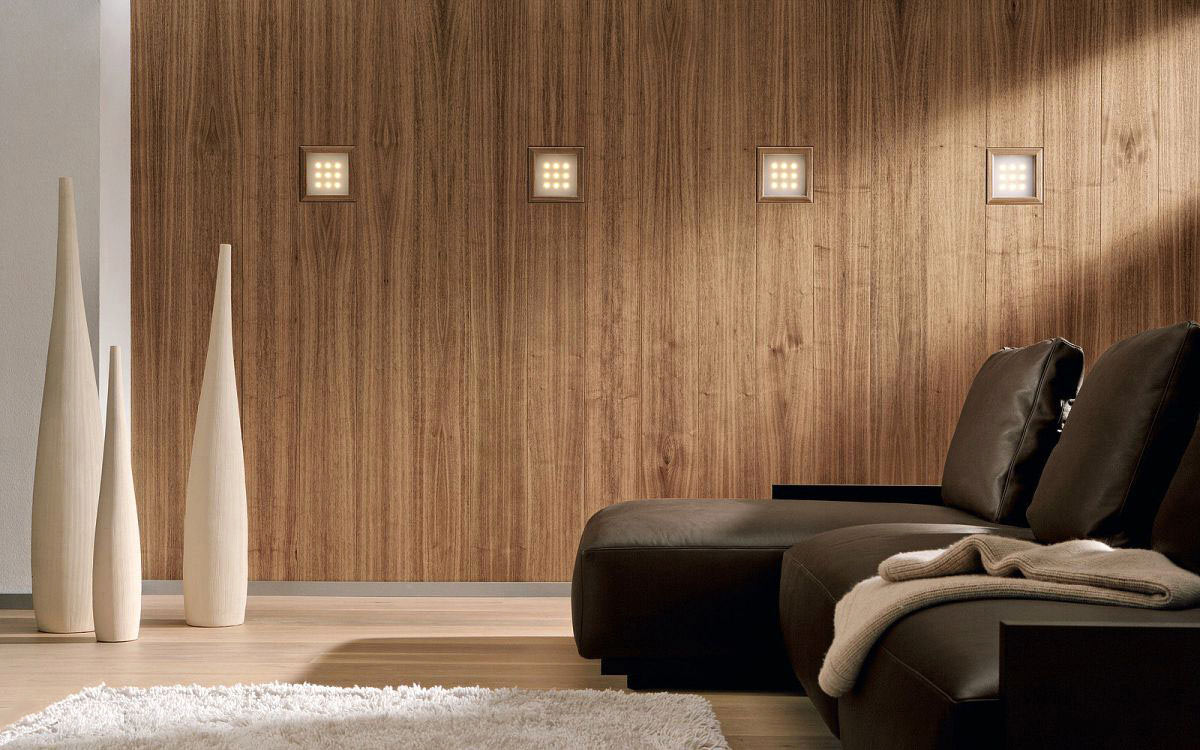

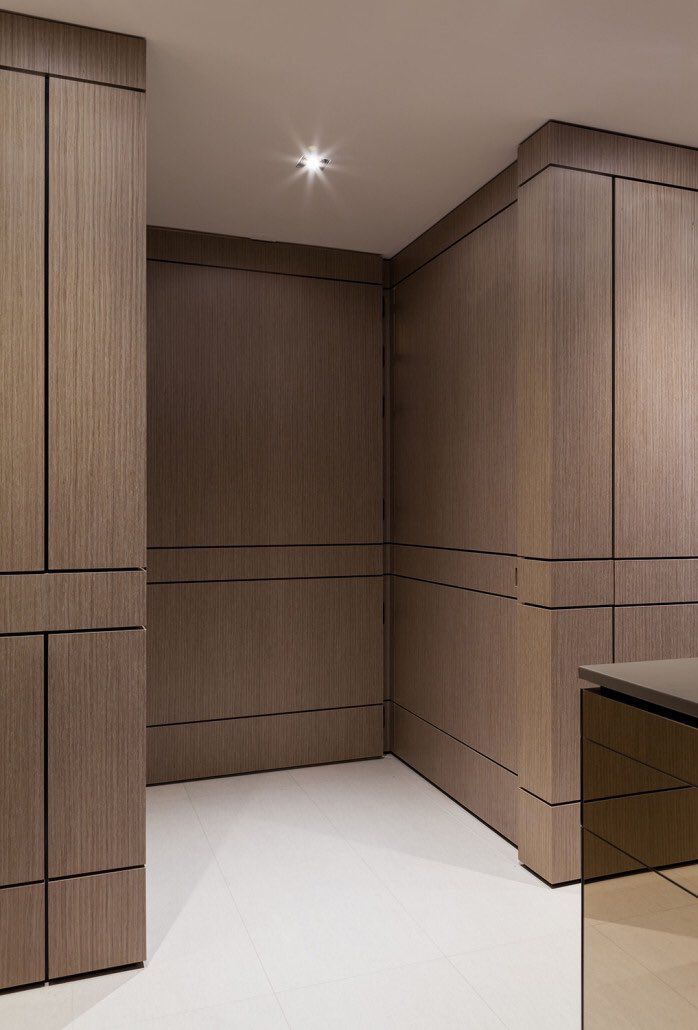

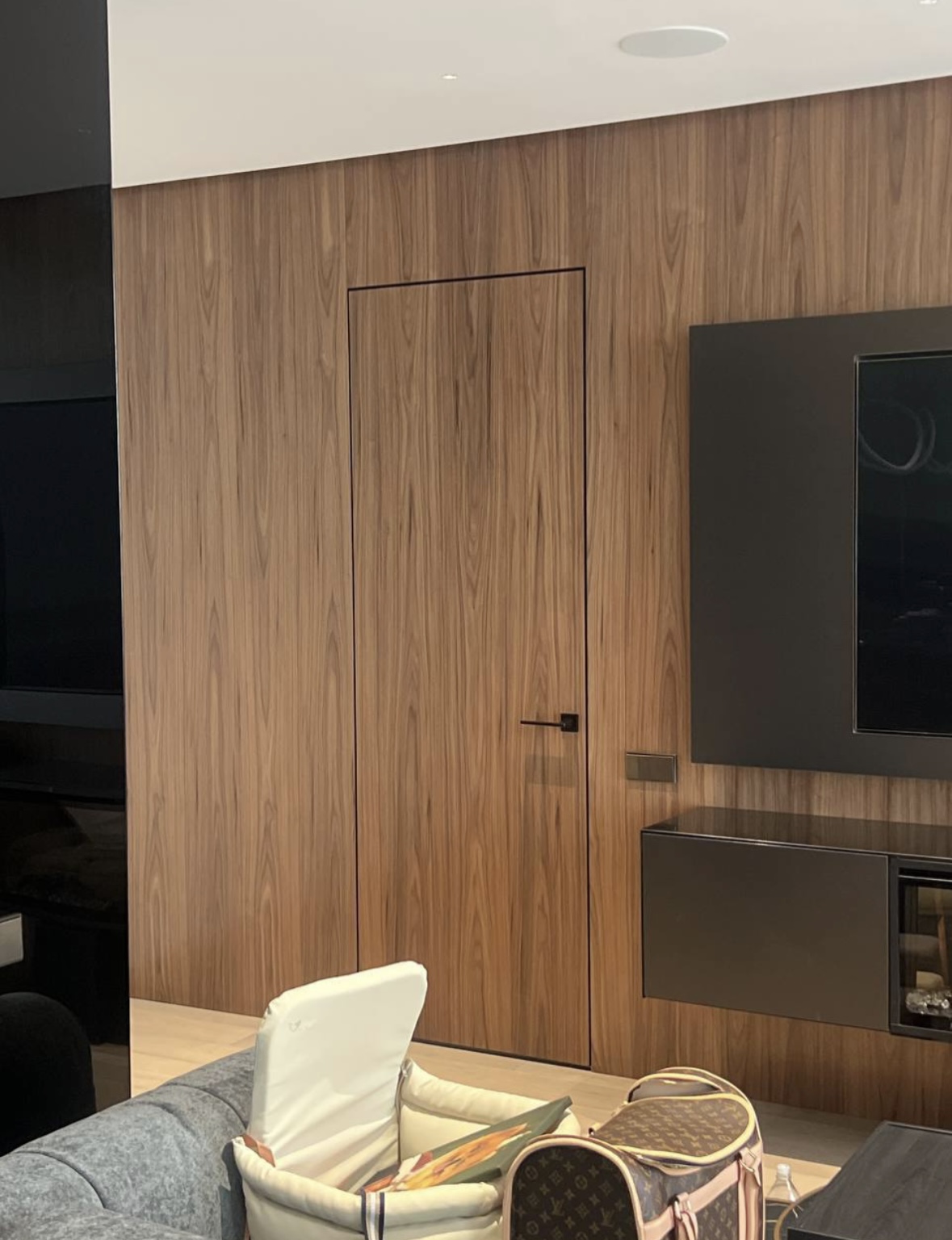

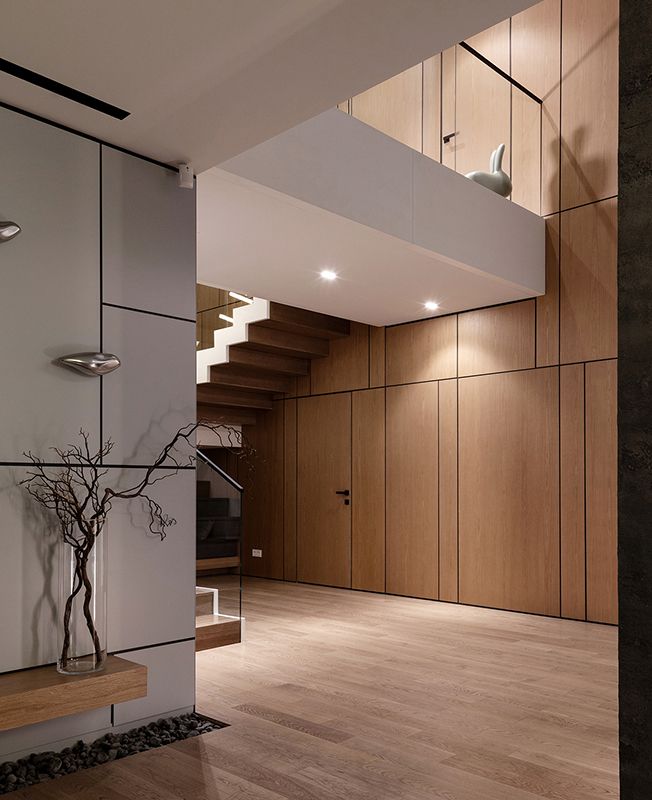

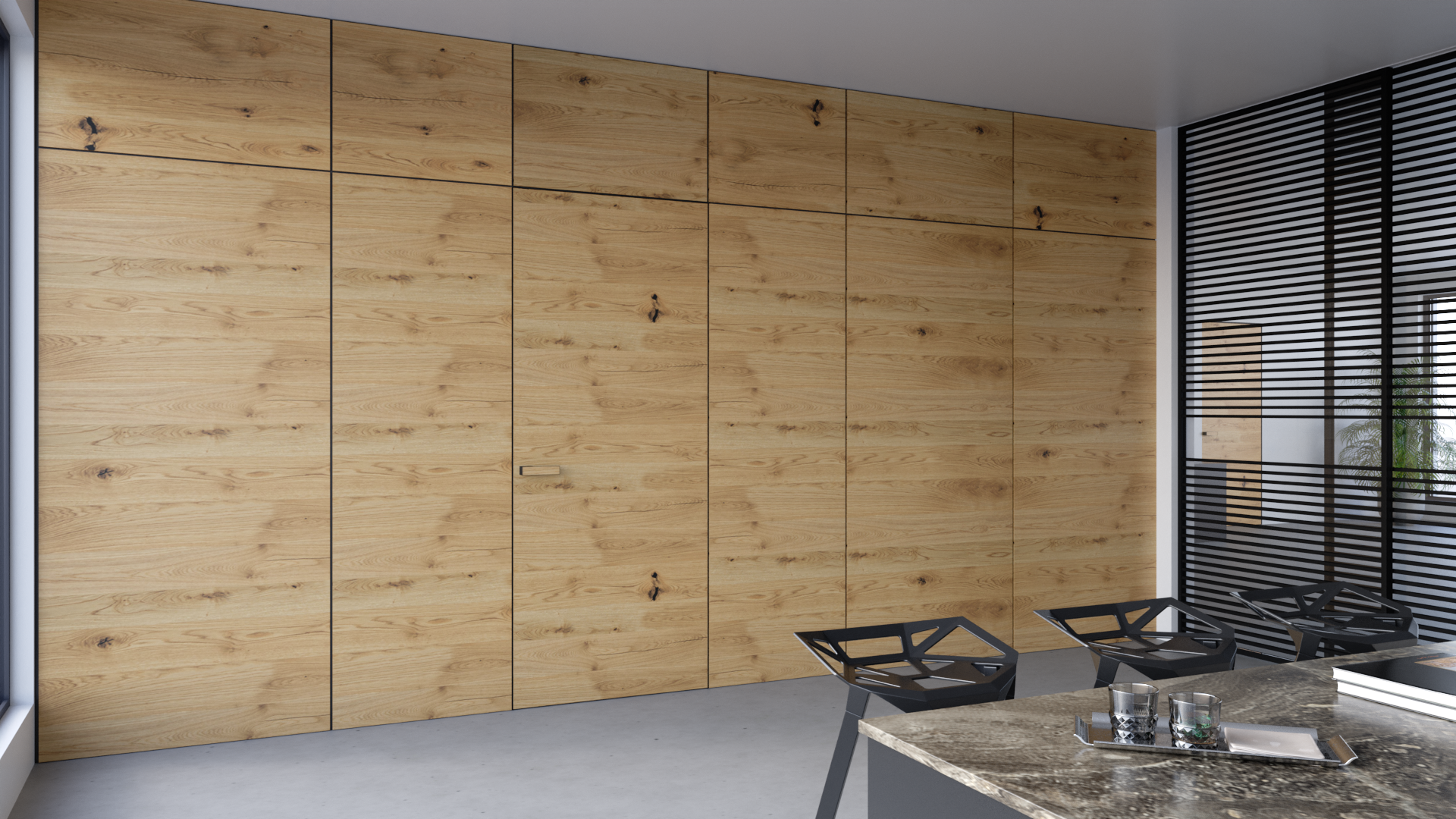

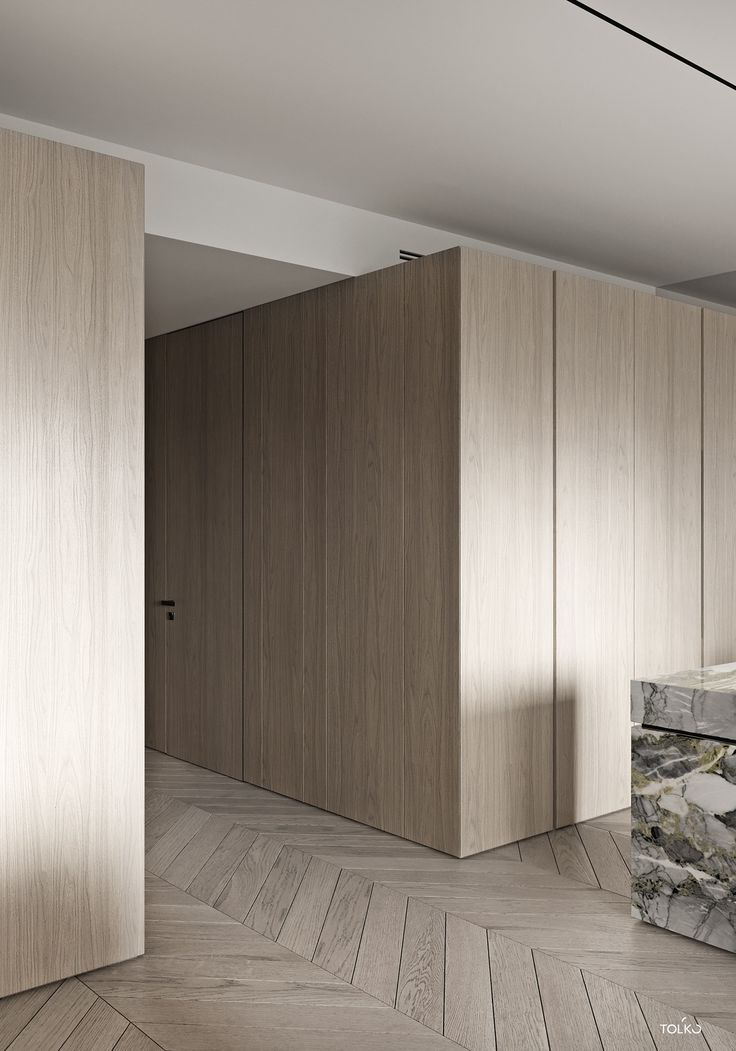

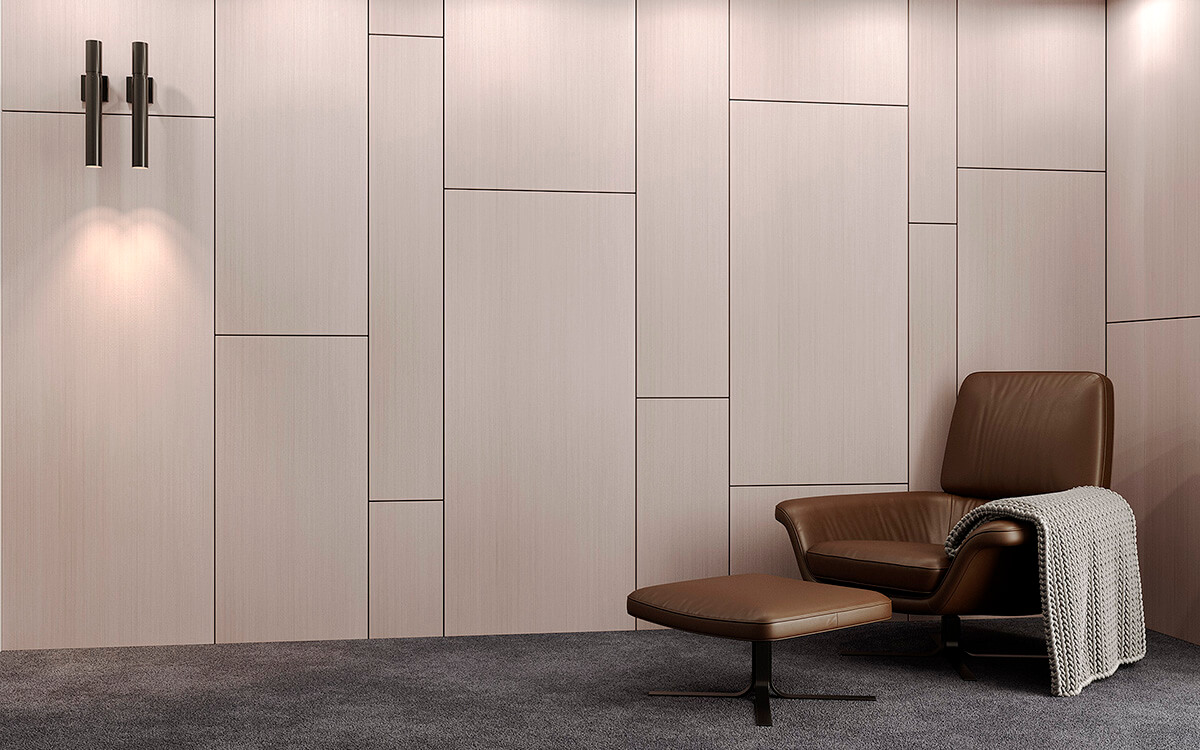

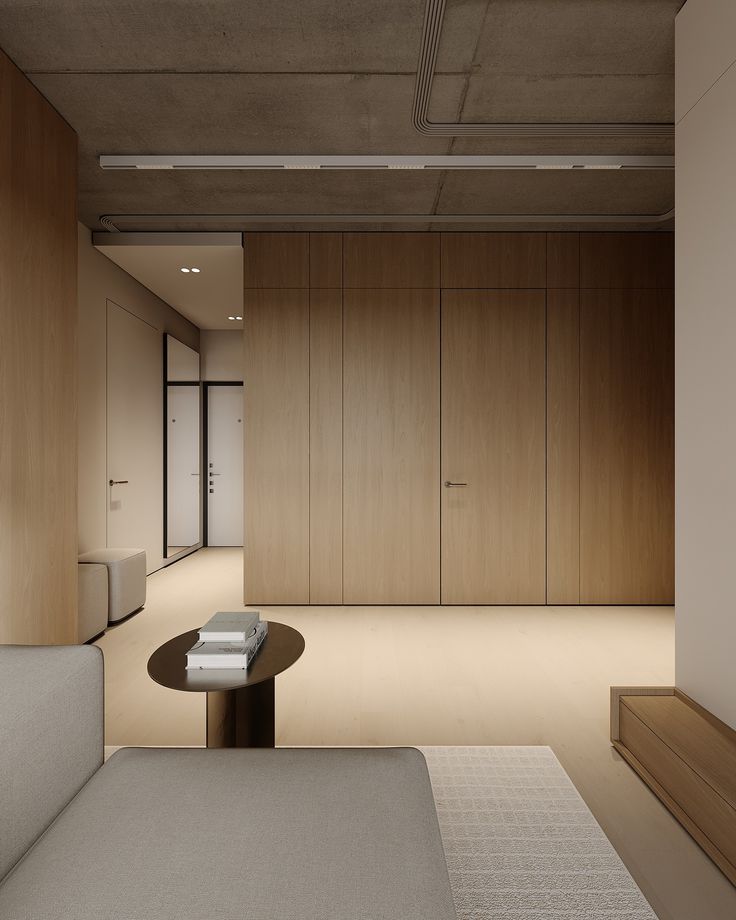

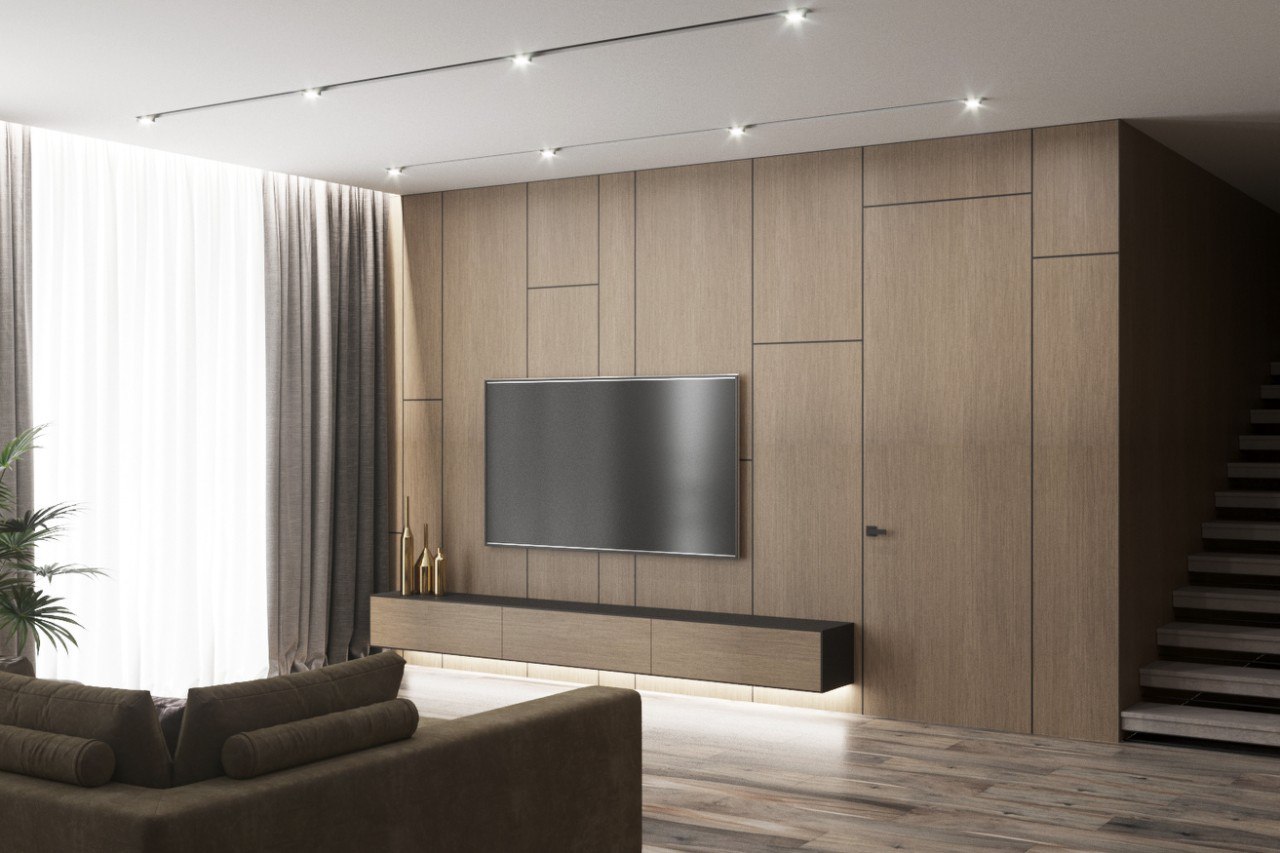

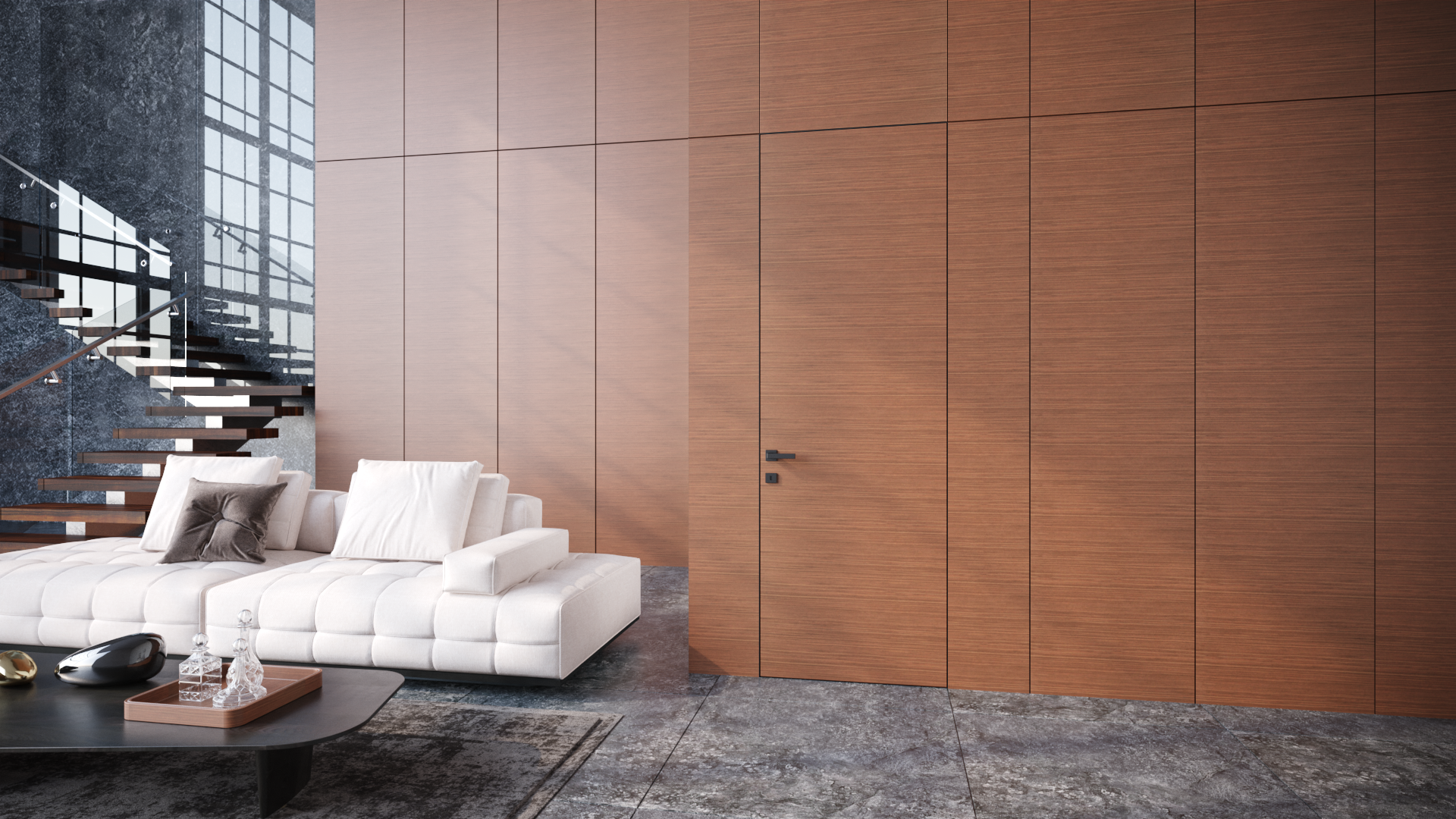

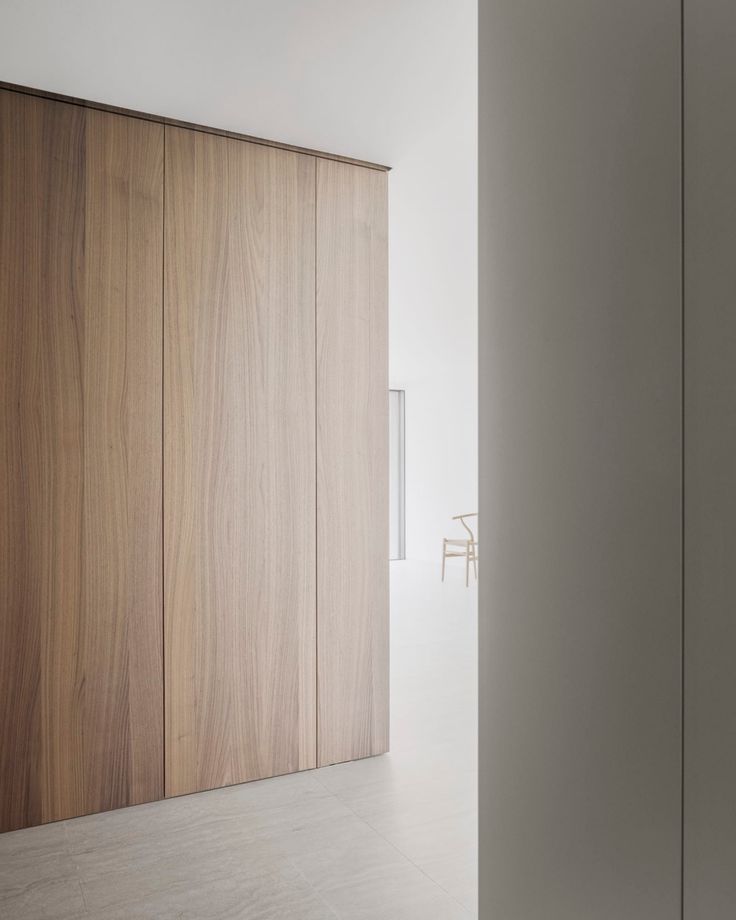

We manufacture custom wood veneer wall panels according to individual drawings to consider all design details and ensure that the panels fit your exact dimensions. Each order will include design approval schemes and panel placement confirmations.
Materials – wood veneer; base made of 12mm moisture-resistant MDF.
Mounting type – wall-mounted, built into doors, with the option to attach to profiles or other surfaces.
Colour
Veneer - Category 1 | radial canaletto walnut, wenge, sandalwood, graphite oak, rustical oak, radial oak, ebony, cardinal oak |
Veneer - Category 2 | flader oak, black-white oak, lido oak, caravaggio walnut, budelli walnut, tangental canaletto walnut, milan walnut, teak, louisiana wenge, zebrano black, messina oak, salina oak, tangential gray oak, ravena walnut, radial vanilla oak, tangential vanilla oak, Light Oak without stain, CLASSIC OAK DACP 07 |
Veneer - Category 3 | black-silver oak, prima olive, likata oak, light oak, winter oak, balkan walnut |
Veneer - Category 4 | white ash, black ash, RAL | NCS ash, black wenge, american walnut |
Dimensions – made to custom sizes; the maximum size for one panel is 2750mm x 1200mm [108 1/4'' x 47 1/4'']. The height of the panels also depends on the size of the veneer sheet.
Additional options - custom selection of veneer pattern, aluminum profile inserts, backlighting, combined with panels of different finishes.

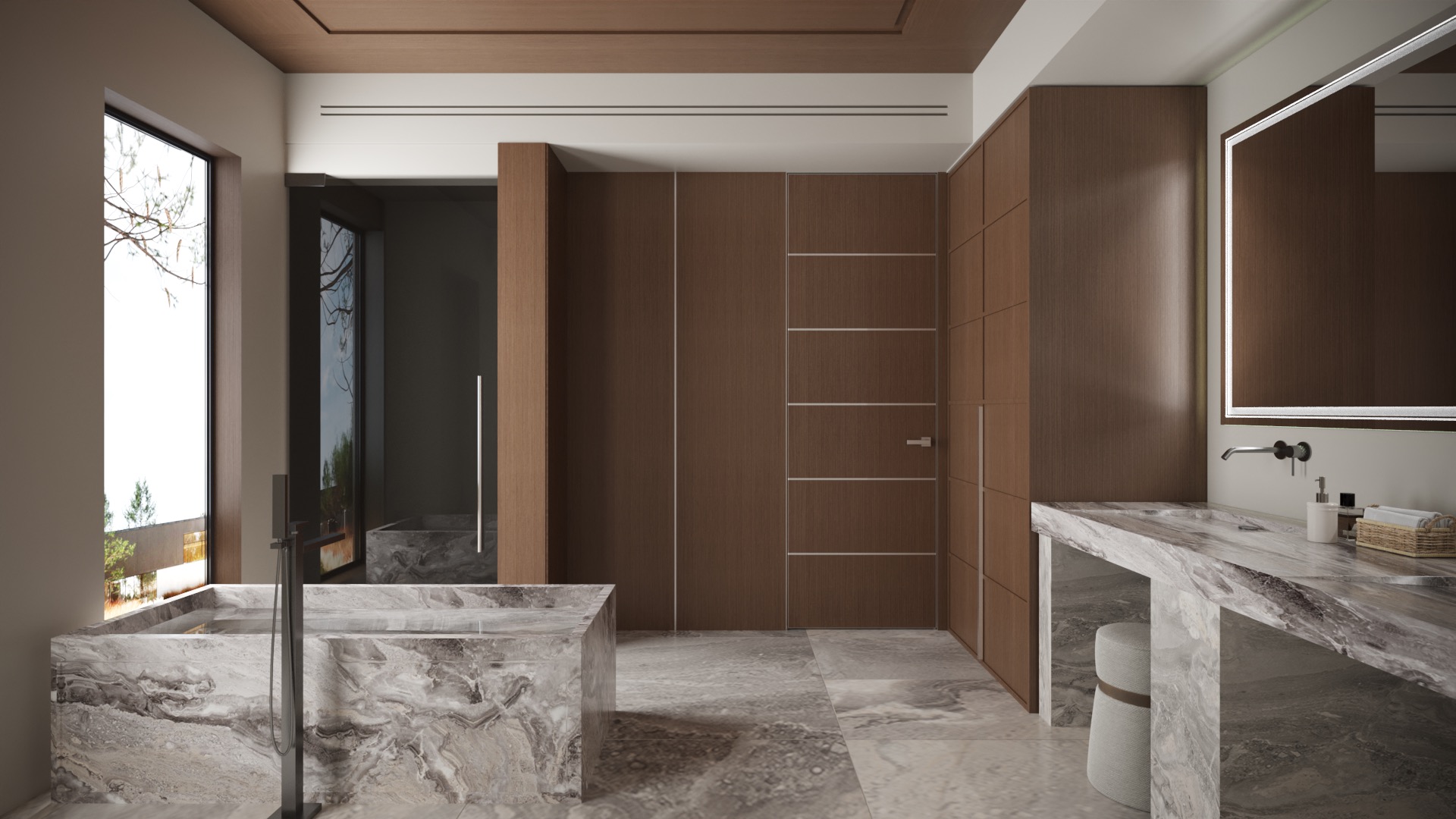

Application area – suitable for residential interiors, commercial spaces, bathrooms, wardrobes, and entryways.
Cost – price per 1 ft².
All additional information and calculations can be obtained by contacting the sales department.
Elegance and Functionality
Diva Fluid boasts a minimalistic style with optimized sliding trolleys recessed into the door, while patented Fluid soft-closing dampers are discreetly concealed within the track, elevating the overall door design. Diva Fluid is suitable for walls finished with drywall, as long as the specific anchors for plasterboard are used and the installation is done accurately.
You Only See Door and Track
- No Visible Soft Closing Damper on the Sides of the Track
- No Visible Rollers
The exposed aluminum sliding track set is available in various finishes, aligning with the latest design trends:
- Anodized Black
- Anodized Brushed Chrome
- Anodized Brushed Nickel
- Anodized Brushed Bronze
Reduced Opening Force, Effortless Soft-Closing, Smooth Movement, Reliable Performance
Diva Fluid system integrates the latest generation of soft closing dampers, equipped with our innovative Fluid technology with double springs, for smooth braking that ensures an optimal user experience. A new patented system from Terno Scorrevoli’s years of experience.
Flexible Flooring Solutions
In the Diva Fluid system, the sliding mechanism is located at the upper part of the door. Since the door’s weight is supported from above by the wall-mounted sliding tracks, and there are no sliding elements at the bottom, Diva Fluid can be effectively used on uneven floors or carpeting.
Easy to Install
Ease of installation is a reality in the assembly process of the new Diva Fluid, thanks to the introduction of an innovative support jig. This new jig was developed with the aim of guiding installers step by step, greatly simplifying the entire installation process. Its introduction aims to ensure not only a smooth assembly, but also to maximize the overall functionality of the system. With this support jig, installers can proceed with the assembly of the Diva Fluid system intuitively and efficiently, ensuring optimal installation and excellent system performance.
Warranty
The quality and reliability of the Diva Fluid system are officially certified thanks to tests carried out at authorized laboratories and certification bodies, performing up to 100,000 door opening cycles. Systems installed by an authorized professional come with a comprehensive 10-year warranty, covering both product replacement and reinstallation.
Wall Level Tolerance
1/4-inch in 10-feet (vertical , horizontal, diagonal)
Technical Details
Slab Width Range: between 24-inch and 40-inch
Maximum Slab Weight: 80kg
Bottom Gap: 3/8-inch
- Max. weight per door 176-287 lbs [80-130kg]
- Min. door thickness 1-1/2" [38mm]
- Max. track length 118" [3000mm]
- Soft open/close door operation
- Top hung door hardware
The standard set for one door included:
Villes 2421 hidden installation profile - 2m
Villes 2201/G track - 2m
Villes 5660/100 premium mechanism with 2 sides closer up to 100 kg - 1 set
Hidden door-1011 (MDF door for hidden installation) - 1 set
Villes 2205 lower limiter - 1 set
Not supplied as a single cassette. The opening must be built separately.
No bottom hanger. Custom sizes available.
Door, Lock and Handles are NOT included!
Magic2 is the innovative invisible sliding door system outside the wall, for wooden doors, with soft-closing.
Magic2 is the multi-patented system, designed and produced by Terno Scorrevoli, totally Made in Italy.
A product that integrates the magic of architectural minimalism and the smoothness of an extremely tested system - today in version 2.
Dampers with adjustable positioning: Dampers were designed to be independent from wall-spacer wheels. They're suitable to be moved into the track to allow door positioning adjustment.
Wall-spacer wheels: Wheels are positioned on the door extremities, in order to protect the door from wall contact, when wall surface are not plane.
Patented adjustment system Magic2 integrates following door adjustments:
- Door height adjustment from floor,
- Micrometic adjustment of door from wall,
- Micrometic adjustment of door parallelism from wall
- Door adjustments of wall distance and parallelism, are meant to compensate possible irregularities of wall.
All adjustments are available in the top of sliding trolley, without removing the door. Practical anti-jumping system Magic2 includes two turning antijumping activation elements, equipped with two safety levers, easy to rotate with no tools required. Safety levers, clearly visible, will have to be removed once anti-jumping system is activated.
Silent lower guide: With the purpose of furtherly increase sliding quality, the reinforced lower guide in Zamak (reliable and versatile) slides in a silent plastic profile.
Patented bottom wheels designed for a better sliding: Bottom wheels are equipped with a patented suspension spring system, with a larger diameter, bigger bearing and steel pivots. Rubber surface have been enlarged as well, in order to reinforce wheels and improve sliding quality. The rubber does not leave any trace or sign on sliding surface like floors and walls and it does not deform over time.
Width: 680 ÷ 1100 mm
Weight: Max 80 kg
Close to floor: 10 mm
Door, Lock and Handles are NOT included!
