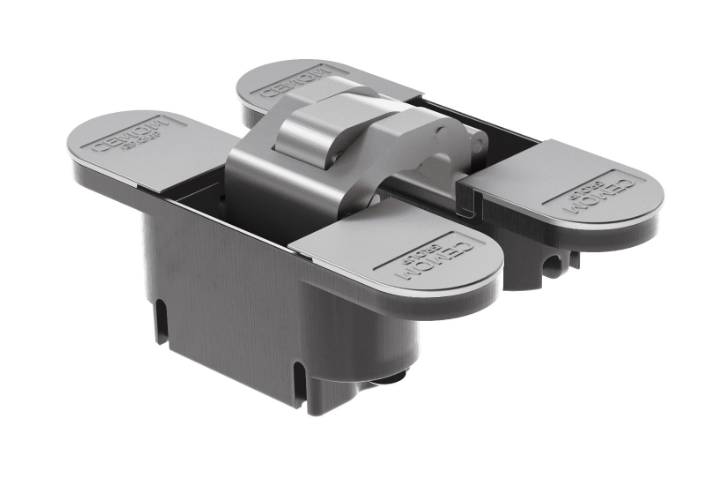

ESTETIC 80A – Concealed Hinge
Product Features:
- Fully concealed hinge for left- and right-handed doors
- Load capacity: 80 kg (per 2 hinges)
- Compatible with wooden, steel, and aluminum profiles
- Suitable for non-rebated doors
- Lubrication-free bearings for smooth operation
- 3D adjustment: side ±2 mm, height ±2 mm, compression ±1 mm
- ABS front covers

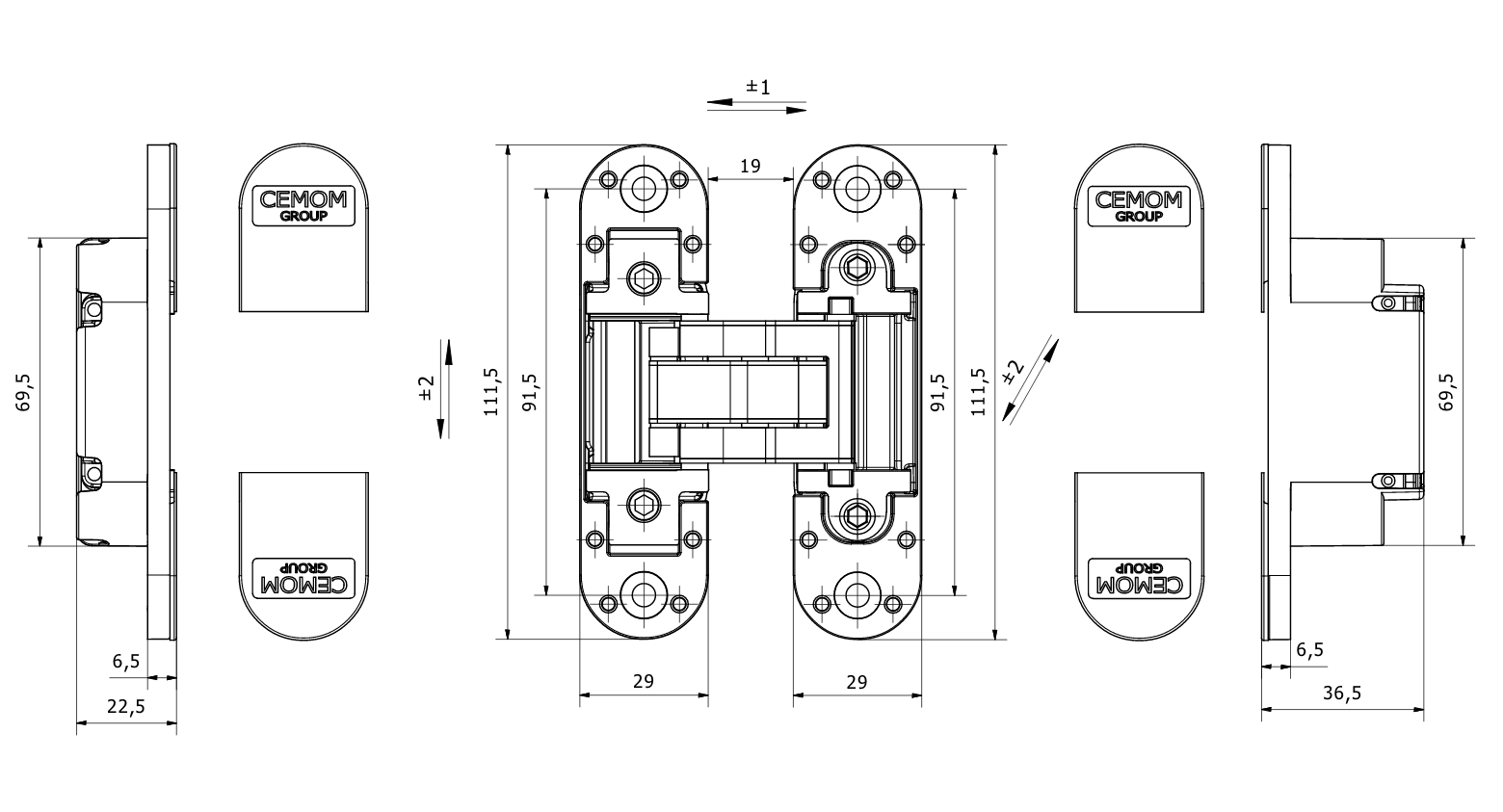

- Dimensions: 111.5 mm length × 29 mm width
- 180° opening angle
